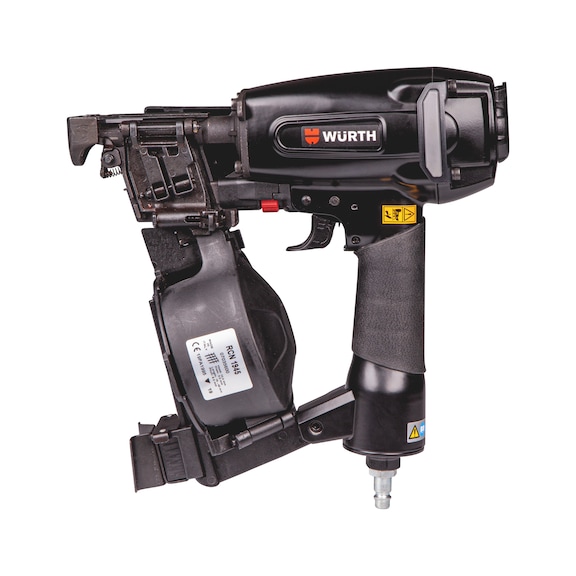

Coil-style felt nail gun RCN 1945
Pneumatic roofing paper nailer RCN 1945
NLR-PN-COIL-RCN1945
Art.-no. 07035591
EAN 4062856075850
Register and access more than 75 000 products
Professional coil-style nail gun to be used in attaching bitumen felt, wind shield boards and other similar porous building boards using compressed air.
Light, balanced and easy-to-use nail gun, which can be used with wired Würth roofing coil nails 19–45 mm.
- Driving power: compressed air, operating pressure 5–7 bar
- Nail gun dimensions: 280 x 110 x 260 mm
- Nail gun weight: 2.3 kg
- Air consumption: 0.9 L/stroke
- Nails: 3.0 x 19–45 mm wire binding
- Capacity of the magazine: 120 nails
1 Year Warranty
on issues of material and production
Datasheets(X)
For stapling bitumen felt, wind-protective panels and similar porous building boards.
For stapling thick cardboard, felt and similar materials to wood.
Suitable for min./max. nail length | 19-45 mm |
Suitable for nail diameter | 3.0 mm |
Suitable for min./max. nail diameter | 3.0 - 3.0 mm |
Magazine capacity | 120 PCS |
Min./max. magazine capacity | 120-120 PCS |
Air consumption per impact | 0.9 |
Weight of machine | 2.35 kg |
Pneumatic connection | 1/4 inch FT |
Min./max. operating pressure | 0.5-0.7 MPa |
Length | 260 mm |
Width | 110 mm |
Height | 280 mm |
Min. hose inner diameter | 8 mm |
