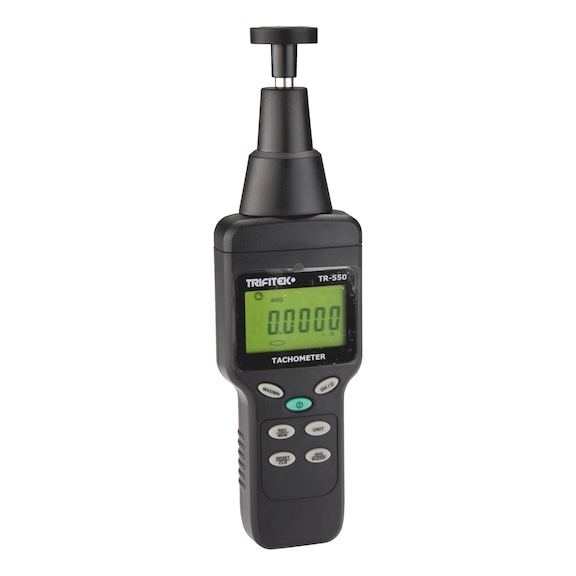

Optical tachometer TR-550
TACHOMETER TRIFITEK TR-550
Art.-no. 0715539190
EAN 4053479952697
Register and access more than 75 000 products
Versatile measuring instrument with a measuring distance of 40–550 mm and a measuring range of 15–99990 RPM. The backlit LCD display makes reading the result easier and clearer in all lighting conditions. The device has a low battery indicator and automatic power-off, which extends battery life.
- Optical tachometer TR-550
- Measurement modes: non-contact or contact wheel
- measuring distance: 40–550 mm
- Measuring range 15–99,990 rpm
- Backlit 6-digit LCD display
- MAX/MIN, data hold and AWG (mean value) features
- Adjustable auto power off
- Low battery voltage indication
- Measuring indication buzzer, on/off selectable
- Red high-visibility light source, max. measuring distance 550 mm
- Battery life 24 h, external 9 VDC power source connection.
Measuring rpm, rps, m/min, m/s
- Measuring memory
- Timed saving of 200 measurements
Datasheets(X)
Min./max. rotation-speed measuring range | 10-99990 rpm |
Automatic switch-off | Yes |
Rechargeable battery/battery permanently installed | Yes |
Nominal voltage | 9 V/DC |
Type of rechargeable battery/battery | Alkali |
Number of rechargeable batteries/batteries | 2 PCS |
Product weight (per item) | 470 g |
Length | 186 mm |
Width | 70 mm |
Height | 36 mm |
WEEE (taking back waste electrical and electronic equipment) | 02 |
