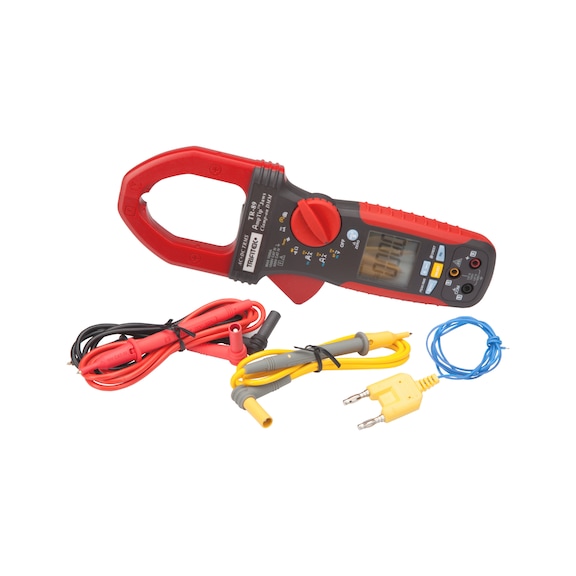

TRMS AC/DC clamp meter TRIFITEK TR-89

Name: TRMS AC/DC clamp meter TRIFITEK TR-89
Brand: Würth Oy
SKU: 0715539220

CLMPM-BLACK/RED-AC/DC-1000A

Art.-no. 0715539220

EAN 6430048131666

All versions

Similar products

TRMS AC/DC clamp meter TRIFITEK TR-89

Art.-no. 0715539220

Quantity

x 1 pcs

Show availability at another Würth Center

Exclusively for trade customers

Locate Würth Center
Login/Register
Call customer service: 010 308 6700

Safe and reliable TR-89 TRUE RMS clamp meter for demanding professional applications. The meter has wide measurement ranges and versatile multimeter functions.

Broad measurement ranges enable both AC/DC current measurements up to 1000 A and measurements of small currents. In addition, the device has versatile multimeter functions. Automatic switch off extends battery life and a low battery indicator ensures that you replace new batteries in time.

Broad measurement ranges – AC/DC current measurements up to 1000 A.

Measurements of small currents are possible – max resolution 0.01 A (AmpTIP function, measurement range 60 A)

Comprehensive multimeter functions

Diode testing, continuity buzzer

DC+AC voltage measurement (combinations)

DC+AC current measurement (combinations)

Non-contact voltage detection (bar screen + sound)

Determining the direction of rotation of a 3L motor and 3L field (phase sequence)

True RMS measuring

Min/Max/Average functions, Data hold / Relative functions, DC Zero

Crest peak save function (5 ms)

Measured conductor max Ø 51 mm

Auto power off, low battery indicator

A clearly lit LCD screen, target light for measurement point

CAT III 1000 V, CAT IV 600 V

CE, EMC EN61326-1, LVD, EN61010-1, EN61010-2-032, EN61010-2-033

Dimensions 258 x 94 x 44 mm, weight 395 g

2 Years Warranty on manufacturing and material defects

Excluded are damages caused by improper use, overloading or failure to observe the operating instructions.

Product information

Würth Oy Catalogue

Datasheets(X)

Certificates/ Documents

Display	LCD
Enclosure diameter	51 mm
Min./max. current measuring range	0.1 µA-1000 A
Min./max. current measuring range 2	0.01 A/AC-1000 A/DC
Min./max. current measuring range 3	0.01 A/AC-1000 A/AC
Min./max. voltage measuring range	0.1 V-1000 V
Min./max. voltage measuring range 2	0.1 V/DC-1000 V/DC
Min./max. voltage measuring range 3	0.1 V/AC-1000 V/AC
Min./max. electrical-resistance measuring range	0.1 Ohm-60.00 kOhm
Overvoltage protection category	CAT IV/600 V
Length x width x height	258 x 94 x 44 mm
Battery designation	1.5 V LR6 AA
Number of rechargeable batteries/batteries	2 PCS

Additional accessory:

Product

Description

Quantity

Price
/PU

Storage pouch, universal

BG-F.MULTIM-BLCK-260X210X100

Art.-no. 0715539147

Protect your valuable measuring instruments and tools with a padded black protective bag. The zippered bag is easy to open and close.

x 1 pcs

Lead series TL223 Fluke SureGrip™

TESTLDSERIE-F.FLUKE-TL223

Art.-no. 0715539159

The TL223 Fluke test lead set includes the AC220 SureGrip crocodile clip set, TP238 SureGrip test probes, and the TL224 SureGrip test lead set.

x 1 pcs

TL224 test lead series, silicone Fluke TL224 SureGrip™

TESTLDSERIE-F.FLUKE.TL224

Art.-no. 0715539160

Multimeter silicone-insulated test leads with safety banana plugs.

x 1 pcs

AC 283 double hooks FLUKE® SureGrip™

PAIR-HOKPRB-M.SUREGRIP

Art.-no. 0715539161

Fluke AC283 SureGrip -dual hook test probes. Recommended for use with TL224 test leads.

x 1 pcs

AC285 alligator clips FLUKE® SureGrip™

ALICLMP-AC285-FLUKE

Art.-no. 0715539162

AC285 SureGrip crocodile clips for various applications, from thin wire to 20 mm bolts. Recommended for use with TL224 test leads.

x 1 pcs
