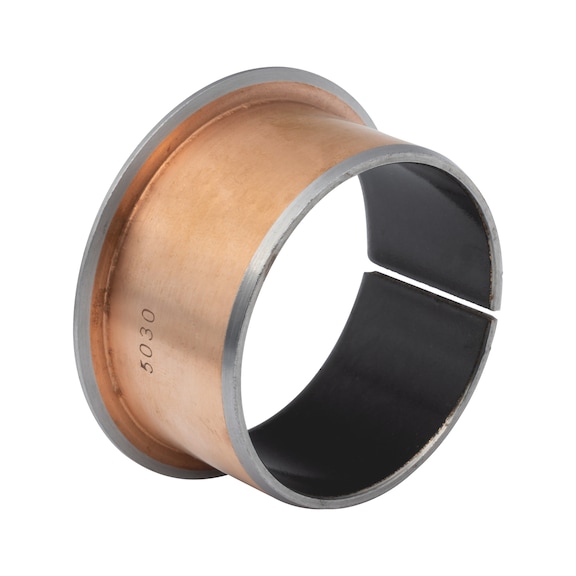

Plain bearing TB-PTFE-F
Straight PTFE multilayer plain bearings are self-lubricating and have very low friction, allowing operation without lubrication.
Register and access more than 75 000 products
Variants
Register and access more than 75 000 products
Call customer service: 010 308 6700
Prices for customers after login
Flanged three-layer bearing with a copper-plated steel backing, a thin intermediate bronze layer, and a thin PTFE sliding layer on the inner surface. This material is best suited for applications with rotating or oscillating movement where additional lubrication is not possible. The bearing material has very low friction and good chemical resistance. These bearings are suitable for many standard applications where additional lubrication is difficult to arrange.
Load:
- Static 250 N/mm²
- Dynamic 140 N/mm²
- Oscillating 60 N/mm²
Maximum speed:
- With oil: >2.5 m/s
- With grease: 2.5 m/s
Friction:
- 0.03 – 0.20 μ
Tolerance:
- Housing tolerance H6/H7
- Recommended shaft tolerance f7 or h8
Lubrication:
- Primarily used without additional lubrication.
- Avoid lubricants containing molybdenum disulfide (MoS₂) or graphite additives
